Monitor Samsung Syncmaster Modelo 794v

Descrição

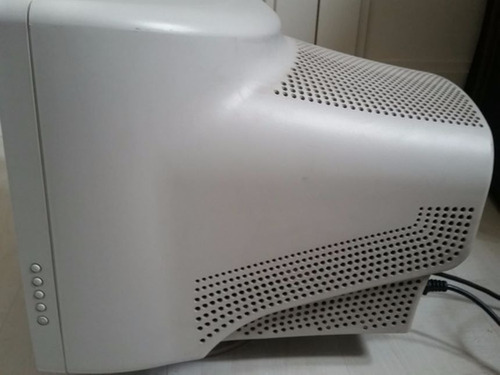

Monitor CRT Samsung SyncMaster 794v S 17" polegadas
Com Base
Com cabo de video e energia
Em perfeito estado, testado!
Ótimo para Gamer 800x600@114Hz e 640x480@141Hz
Ótimo para montar arcade com monitor CRT
Model Code: KS17SCLPZ/XAZ

Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 53.700 85.100 56.250 +/+
VESA, 1024 x 768 68.700 85.000 94.500 +/+

General Model Name SyncMaster 794s,794v
Picture Tube Type 17"(43cm) Full square type (40.6cm viewable)
Deflection angle 90 °
Dot Pitch 0.23mm (Horizontal)
Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static.
Resolution
Optimum resolution 1024 x 768 @ 85Hz
Maximum resolution 1280 x 1024 @ 60Hz
Active Display
Horizontal 312 ± 4 mm
Vertical 234 ± 4 mm
Synchronization
Horizontal 30 ~ 70 kHz
Vertical 50 ~ 160 Hz
Input Signal Definition
Video Signal RGB, Analog 0.7 Vpp positive at 75 ohms
Sync Signal Separate H/V sync, TTL level, positive or negative
Display Color Unlimited
Maximum Pixel Clock 110 MHz
Power Supply 100 ~ 240VAC rms ± 10%, 60/50 Hz ± 3Hz
Power Consumption Less than 70W (Maximum 75W)
Dimensions (WxDxH) 401 x 410 x 378 mm / 15.8 x 16.1 x 14.9 inch (After installation of Stand)
Weight 14.3kg
Environmental considerations
Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)
Humidity 10% ~ 80%, non-condensing
Storage Temperature -4°F ~113°F (-20°C ~ 45°C)
Humidity 5% ~ 95%, non-condensing
